STRONGARM TEMPLATES
Strongarm Templates are designed by and for Safe Technicians. These templates help guide you toward specific drill points on the lock box for maximum efficiency.
.png/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:360,cg:true)

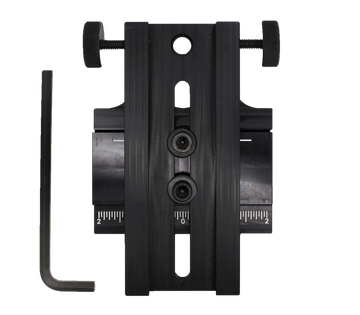

StrongArm Uni-Temp
Our Universal Template attaches to the safe's dial ring mounting screw holes for safe drilling with the MiniRig. The Uni-Temp uses an X-Y axis system with ruler scales and an index to allow you to set specific up, down, left and right measurements from the spindle hole center. Set-up is very fast. Lock in your setting, attach the MiniRig and start drilling
.png/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:360,cg:true)
StrongArm T1
The T1 templatep provides drill points for the fence, lever screw, relocker and mounting screw on S&G/Diebold/LaGard/Ilco combination locks.
.png/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:360,cg:true)
StrongArm T2
The T2 template provides drill points for fence, scope, relocker and lever post for Mosler 120 & 302-402 locks.
.png/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:360,cg:true)

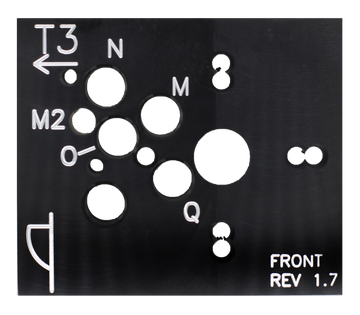

StrongArm T3
The T3 template provides drill points for the side bar, solenoids, and relocker for LaGard Electronic Locks.
.png/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:360,cg:true)

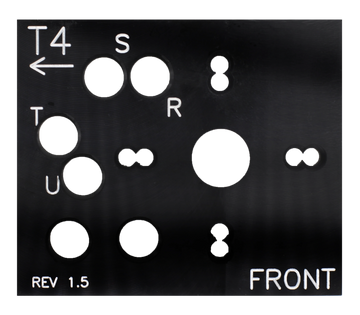

StrongArm T4
The T4 template provides drill points for the Kaba Mas X-07, X-08, and X-09, Audit-Cencon & B52 locks.
.png/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:360,cg:true)

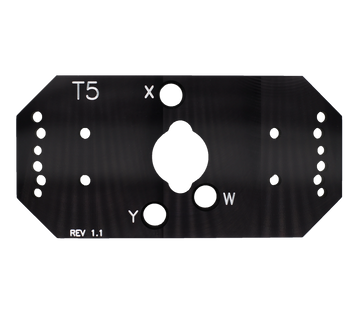

StrongArm T5
The T5 template provides drill points for Star, Gary C&E Rate, and Major floor safes.
.png/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:360,cg:true)
StrongArm T6
The T6 template provides drill points for S&G 2740 motor gear, motor shaft and relocker.
Kaba X-09 for LKM tool
Kaba X-08/X-09 Shearer tool
Kaba X-08 gear
Kaba X-09 relocker
.png/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:360,cg:true)
StrongArm T7
The T7 template provides drill points for the Ilco 505, Amsec ESL 10/20, S&G 6120 and S&G Z series. Also has optional drill points for LG 3330, Kaba-Mas B52.
.png/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:360,cg:true)
StrongArm T8
The T8 template has revised drill point for Kaba Mas Cencon/Auditcon. The S&G 6120, S&G Titan & Sparrtan and LaGard Swingbolt.
.png/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:360,cg:true)
StrongArm T9
The T9 template provides drill points for the ESL 5, 10 & 20, The Amsec relockers and Amsec Active Relocker roll pins.

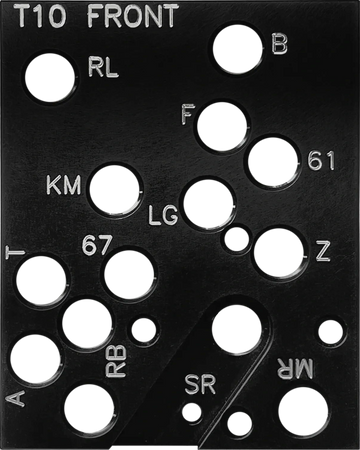

NEW StrongArm T10
The T10 template provides drill points for KabaMas, S&G 6370,Titan Spartan, 6120, 6123, Z02, Z03, LaGard 3300, motor swingbolt, 33E/66E, Rotobolt, Amsec ESL 5/15-10/20, SecuRam Deadbolt & Swingbolt
.png/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:360,cg:true)

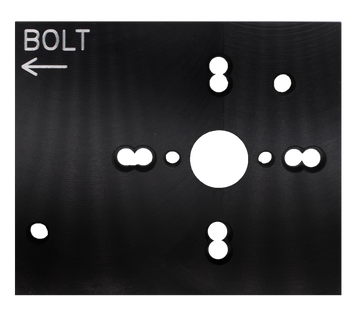

StrongArm BT (Blank)
Customize your own templates for the Mini-Rig! The blank template includes the spindle and dial-ring mounting screw holes only. Just drill and tap a hole to produce custom templates.
